HOMEOptic Solution ZOOM LENS SYSTEM

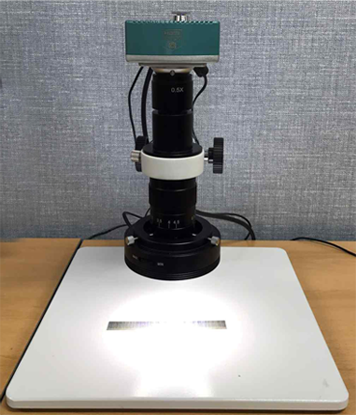

ZOOM LENS SYSTEM

Camera (Full HD)
- 1080P camera using a HDMI cable
- Storing function using an SD Card
- Operation by using a wireless mouse
- Frame Rate : 60
Ring lighting
- White LED ring lighting
- Power on/off & light amount adjustment

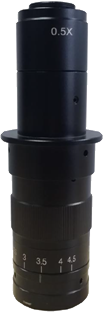

Zoom lens
- 0.7x~4.5x Non Detent type
Stage
- 300x300x300 (W/D/H)
- Rectangular lower plate Base
- Focus Arm : Coarse focus adjustment

Features and strengths

Application
- Various magnifications ranging from x20 to x450 can be selected.
- Applicable to diverse fields
Clear image quality
- High resolution Full HD image quality
- Clear and quick image output by adopting HDMI
Compatibility

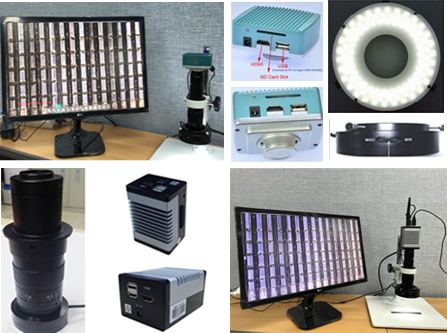

- A combination can be selected as needed. (Camera, Zoom lens, Lighting, etc.)
Convenience
- Easy and simple installation and manipulation
- Efficient inspection can be performed.

CCD

  • A clear image is transmitted quickly via HDMI for inspection without delay.
  • A storing function via HDMI for easy data management

Lighting

  • An amount of LED light can be adjusted.
  • Lighting can be changed according to an inspection subject. (If a function such as reflection reduction, edge strengthening, etc. is necessary, lighting can be selected to realize the optimum image.)

ZOOM LENS

  • In the case of a zoom lens, a magnification from about 40X to 250X (15 mm) is applied as default.
  • If a large area is to be inspected, the zoom lens is configured to further inspect an area of about 30 mm.

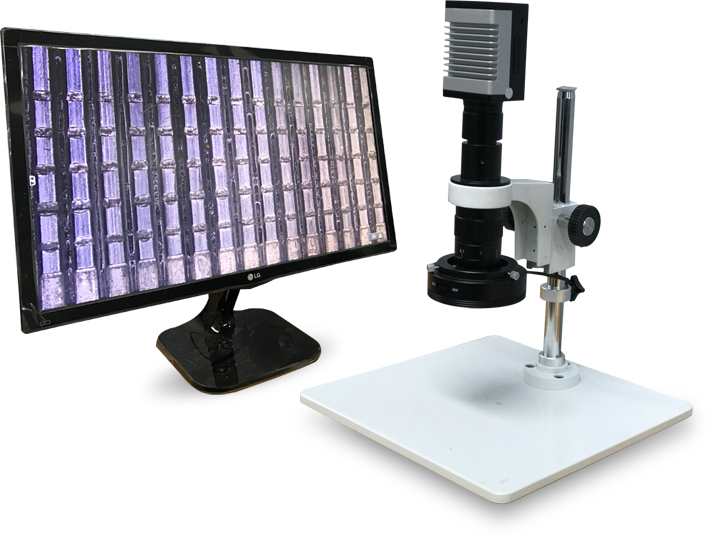

Advantages of inspection via the HDMI monitor
  • Fatigue of inspection personnel’s eyes is remarkably reduced.
  • Accurate inspection owing to clear image quality.
  • Effect of magnifying the image and inspecting the subject via a full screen of the monitor

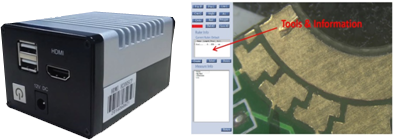

Advantages of inspection via a PC
  • - Powerful data management
  • - Storage and management of measurement data

※ Simultaneous output available to the USB and the HDMI


SPECIFICATION

Camera
Classification HDMI CAMERA HDMI CAMERA
Image Sensor 1920X1080 FULL HD
(1/2.86 inch)		 1920X1080 FULL HD
(1/3 inch)
Advantage High response speed of 60 FPS

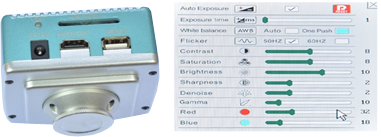

OSD available (Mouse)		 2-dimensionl measurement available
Providing various measurement tools
Storage SD Card(Still image) SD Card(Still image, video clip)
Output HDMI, USB2.0 HDMI
Lens Mounting C Mount C Mount
LENS
Classification TSND-745 TSD-745 TSND-750
Magnification 0.7~4.5X 0.7~4.5X 0.7~5X
Presence of detent No. Yes. Yes.
TV-Adapter 0.5X, 1X 0.35X,0.5X,1X 0.5X(Only)
Auxiliary lens 0.5X, 2X (Optional) 0.5,0.75,1,1.5X (Required) 1x (Required)
